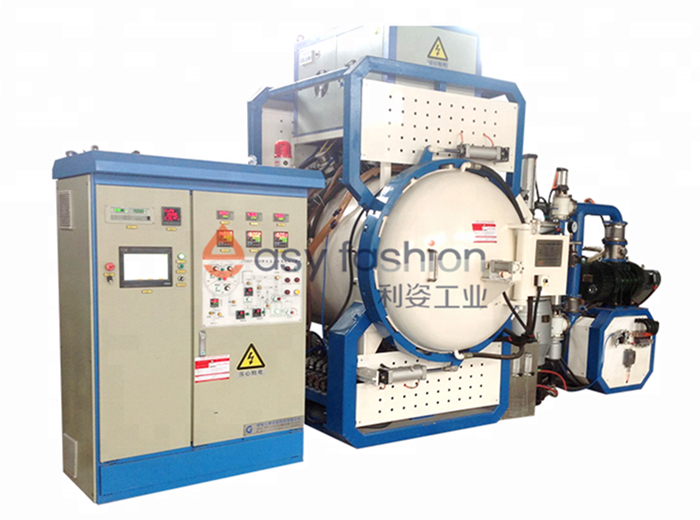

Integrated vacuum debinding and sintering furnace is specially designed for metal injection molding (MIM).
Overview
Integrated vacuum debinding and sintering furnace is specially designed for metal injection molding (MIM).
The following functions could be carried out in the furnace: negative pressure de-waxing, pressure de-waxing with H2, vacuum sintering, atmosphere sintering, partial pressure sintering and cooling.
The debinding function is suitable for following kinds of binder: wax, stearic acid, and oleic acid.
Advantages
Our integrated vacuum debinding and sintering furnace has the following advantages.
① Improve production efficiency: Since the vacuum debinding and sintering integrated furnace can complete debinding and sintering in the same equipment, the switching time in production is reduced, and the production efficiency is improved.
② Reduce energy consumption: In the process of debinding and sintering, the furnace uses advanced heat preservation technology to effectively reduce energy consumption.
③ Convenient operation: The integrated vacuum debinding and sintering furnace adopts advanced control system, which makes the operation more convenient and reduces the labor intensity.
④ Optimize the working environment: Because the vacuum environment is used in the sintering process, the emission of harmful gases can be effectively reduced, thus optimizing the working environment.
Technical Parameter
Model | EF -ZKTS50 | EF -ZKTS100 | EF -ZKTS150 | EF -ZKTS300 | EF -ZKTS500 |
Rated loading capacity (kg) | 50 | 100 | 150 | 300 | 500 |
Heating power (kW) | 60 | 90 | 150 | 180 | 240 |
| Maximum furnace temperature (°C ) | 1600 | ||||
| Temperature control accuracy (°C ) | ≤±5 | ||||
| Rated supply voltage ( V ) | 380V, Three-phase | ||||
Rated heating voltage ( V ) | According to the design, it's equipped with transformer in front of the furnace | ||||
Ultimate vacuum (Pa) | ≤2 (tested in empty chamber and cold status) | ||||
Vacuum pressure rise rate ( Pa/h ) | 0.67 | ||||
Workspace dimensions (mm) (Width x Height x Length) | 300×300×300 | 400×400 ×600 | 500×500 ×700 | 600×600 × 900 | 700×700 ×1200 |
| Remark: The configurations can be upgraded according to the needs. | |||||
Components
Integrated vacuum debinding and sintering furnace is mainly composed of vacuum furnace body, furnace door, heating and insulation system, debinding system, vacuum system, inflation system, cooling system, control system and so on.

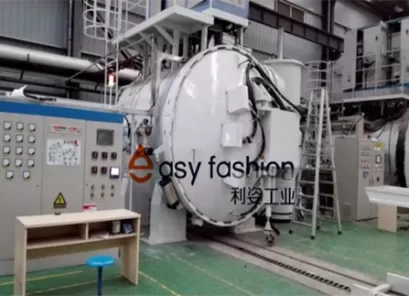

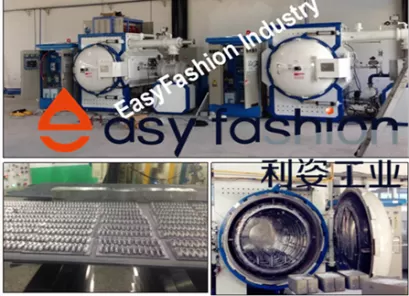

Production line

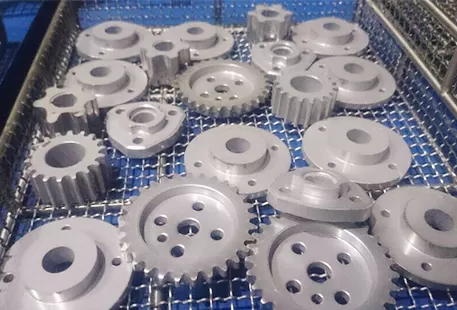

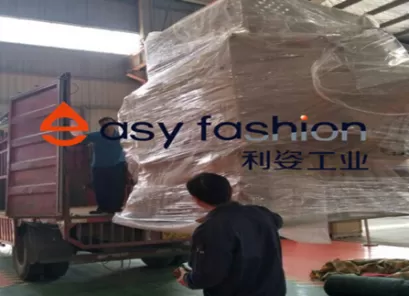

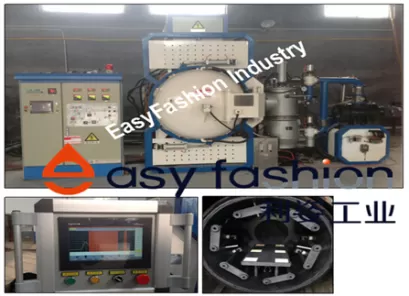

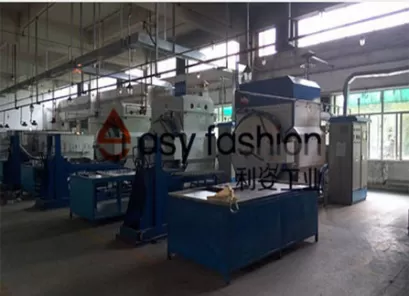

Case
