The working principle of the HDH titanium powder production equipment: Titanium metal (such as titanium sponge) begins to react violently with hydrogen at a certain temperature. When the hydrogen content is greater than 2.3%, the structure of massive titanium hydride is loose, and is easy to be crushed into fine particles of titanium hydride powder. Most of the hydrogen in titanium hydride powder can be removed at about 700°C temperature, and irregular shape of titanium powder can be obtained finally.
Application
We can provide 20-500 kg/batch HDH titanium powder production equipment. Hydrogen dehydrogenation process is widely used to produce titanium powder, zirconium powder, hafnium powder and other metal powders with hydrogen brittleness characteristics. By adjusting the crushing process, different particle size ranges of powder can be produced.
Overview
The working principle of the HDH titanium powder production equipment: Titanium metal (such as titanium sponge) begins to react violently with hydrogen at a certain temperature. When the hydrogen content is greater than 2.3%, the structure of massive titanium hydride is loose, and is easy to be crushed into fine particles of titanium hydride powder. Most of the hydrogen in titanium hydride powder can be removed at about 700°C temperature, and irregular shape of titanium powder can be obtained finally.
Advantages
HDH titanium powder production equipment is mainly used to produce irregular titanium powder, but also can be used to produce other hydrogen brittle metals, such as zirconium, hafnium and so on.
Advantages of HDH titanium powder production technology:
① The cost of raw materials is low: the raw materials used in the hydrogenation dehydrogenation process are titanium sponge, titanium block or titanium debris.
② Large capacity: The smallest model of vacuum hydrogenation dehydrogenation furnace can be loaded with more than 25KG of titanium raw materials, which is much larger than the capacity of other methods.
③ High purity of powder: the hydrogenation process is in a pure hydrogen environment, the dehydrogenation process is under vacuum condition, and the powder has fewer impurities.
Main Functions
We can provide 20-500kg class HDH titanium powder production equipment.
Technical Parameter
| Model | EF-ZK20 | EF-ZK50 | EF-ZK100 | EF-ZK200 | EF-ZK300 | EF-ZK500 |
| Rated load（kg ） | 20 | 50 | 100 | 200 | 300 | 500 |
| Rated furnace temperature（℃ ） | 950 | 950 | 950 | 950 | 950 | 950 |
| Temperature control accuracy（℃） | ≤±5 | |||||
| Rated power（kW） | 20 | 50 | 120 | 160 | 200 | 300 |
| Rated supply voltage（V） | 380 | |||||
| Ultimate vacuum degree (Pa) | ≤6.67( Empty and cold states ) | |||||
| Vacuum pressure rise rate（Pa/24h） | ≤50 | |||||
| Work area size（mm）（W× H × L） | 300× 300 × 1000 | 400× 400 × 1000 | 500× 500 × 1000 | 600× 600 × 1000 | 650× 650× 1200 | 800× 800 × 1300 |
| Temperature control system | Japan SHIMADEN programmable regulator or PLC | |||||
| Vacuum system | Rotary vane vacuum pump + Roots vacuum pump | |||||
Components

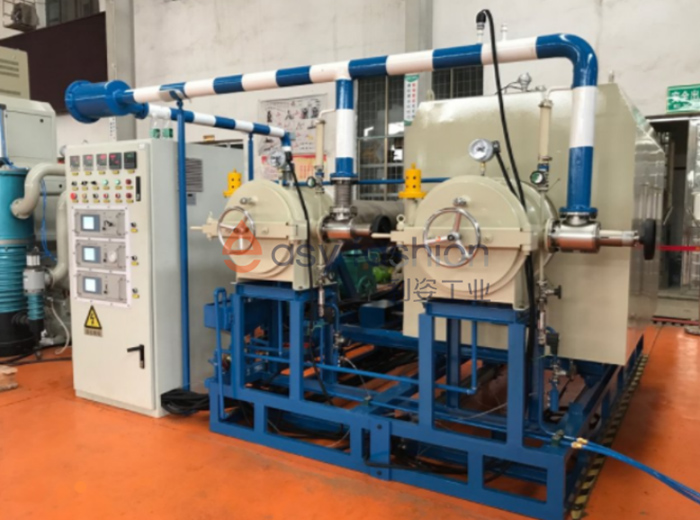

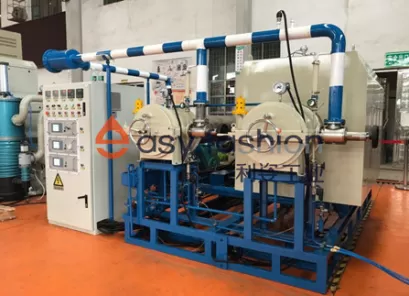

HDH titanium powder production equipment is composed of furnace body, vacuum system, inflation system, heating system, control system, etc.
Others
①HDH titanium powder production equipment combined with vacuum technology and high temperature heat treatment technology, especially is suitable for producing a variety of metal or alloy powder with hydrogen brittleness. Powder produced by HDH technology is irregular shape, combined with plasma spheroidization equipment, can be produced spherical metal powder at a low cost.
②There is no impurity removal in the process of hydrogenation dehydrogenation powder production, so the purity of the final powder mainly depends on the purity of the raw material itself. If strict attention is paid to the process control in the production, only a small amount of non-metallic impurities will be introduced, such as oxygen, hydrogen or carbon.
Optional supporting equipment
1. Hydrogen content detection system
2. Oxygen content detection system
3. Nitrogen content detection system
Production line
For more information, please contact us
EasyFashion is the multifaceted manufacturer of atomization powder manufacturing equipment and thermal processing equipment. We take pride in offering diversified product range which comprises powder production equipment, sintering furnaces,heat treatment furnaces etc.
